Solid State Relay
 |
 |
 |
 |
 |
 |
 |
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !| Type | ZG3NA | ZG3NC | ZG3V | |
|---|---|---|---|---|
| Dimensions(mm) | 58 × 43 × 27 | 57 × 44 × 22 | 104 × 73.5 × 24 | |
| Function | Many kinds of input standards SSR, With operation display | |||
| Output | Insulation | Photoelectric coupler | ||
| Load Voltage | 3-32VDC / 90-420VAC | |||
| Current | 10~40A | 10~80A | ||
| Leakage Current | 100VAC 5mA 200VAC 10mA | |||
| VoRmVceo | 1000 | |||
| di/dt(A/us) | 200 | |||
| dv/dt(v/us) | 400 | |||
| I2t(A2S) | 25~3000 | |||
| Tj(oC)Max.TJ(C) | 100 | |||
| Input | Input Voltage | 3-32VDC / 90-250VAC | ||
| Input Current | <40mA | |||
| Off Voltage | 1VDC | |||
| On Voltage | 3VDC | |||
| Off Time | 0.5ms DC / 10msAC | |||
| On Time | 0.5ms DC / 10msAC | |||
| Dielectric Strength | 50Hz, 60S 2500VAC | |||
| Ambient Temperature | -30oC~80oC(Under non-ice / dewfall condition) | |||
| Efficiency of Safety Working Current | Dissipative load is 60% / Inductive load is 40% | |||
| Type | Input Voltage | Output Voltage | Output Current (A) |
|---|---|---|---|
| ZG3T-203B | 3-32VDC | 30-240VAC | 3 |
| ZG3T-303B | 3-32VDC | 90-480VAC | 3 |

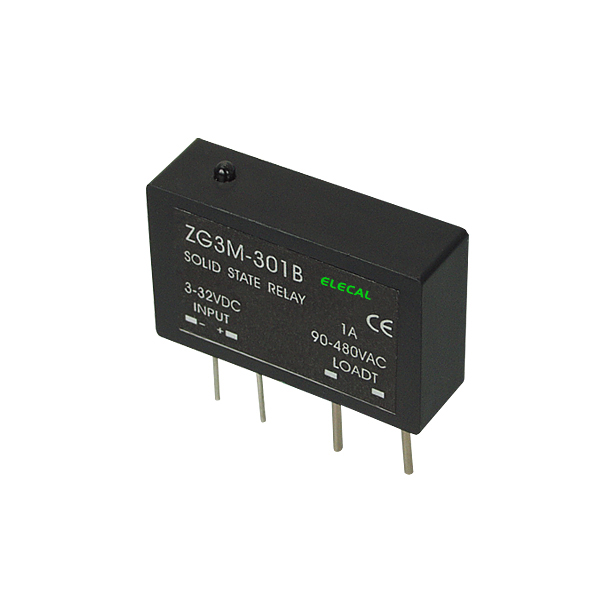

| ZG3M-301B | 3-32VDC | 90-480VAC | 1 |
| ZG3N-203B | 3-32VDC | 30-240VAC | 3 |
| ZG3M-208B | 3-32VDC | 30-240VAC | 8 |

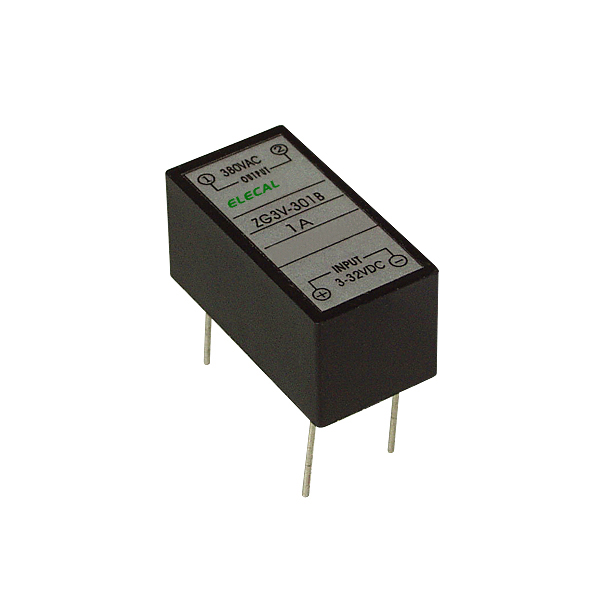

| ZG3V-301B | 3-32VDC | 90-480VAC | 1 |
| SSR-25DA | 3-32VDC | 24-380VAC | 25 |

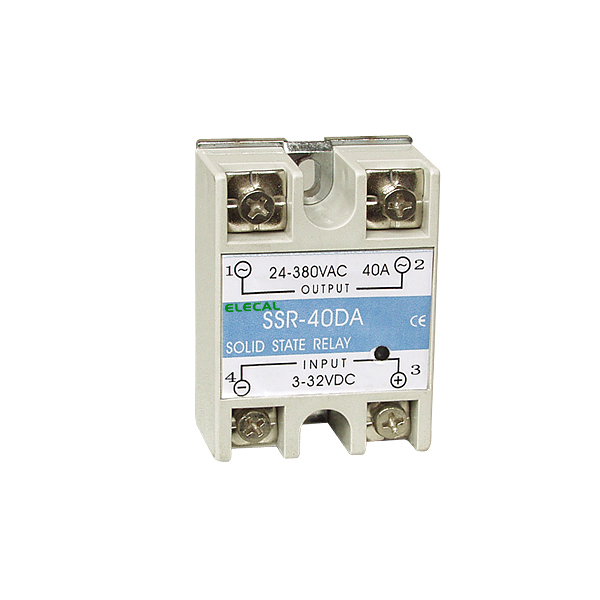

| SSR-40DA | 3-32VDC | 24-380VAC | 40 |
| SSR-25AA(VA) | 80-250VAC | 24-380VAC | 25 |
| SSR-40AA(VA) | 80-250VAC | 24-380VAC | 40 |
| ZG3NC-210B | 3-32VDC | 30-240VAC | 10 |
| ZG3NC-310B | 3-32VDC | 90-480VAC | 10 |
| ZG3NC-220B | 3-32VDC | 30-240VAC | 20 |
| ZG3NC-320B | 3-32VDC | 90-480VAC | 20 |
| ZG3NC-225B | 3-32VDC | 30-240VAC | 25 |
| ZG3NC-325-B | 3-32VDC | 90-480VAC | 25 |
| Type | ZG3INA | ZG3INB | ZG13 | |
|---|---|---|---|---|
| Dimensions(mm) | 104 × 73.5 × 24 | 104 × 73.5 × 24 | 104 × 73.5 × 24 | |
| Function | Many kinds of input standards SSR, With operation display | |||
| Output | Insulation | Photoelectric coupler | ||
| Load Voltage | 0~220VAC/0~380VAC | 0~380VAC | ||
| Current | 10~40A | 10~80A | ||
| Leakage Current | 100VAC 5mA 200VAC 10mA | |||
| VoRmVceo | 1000 | |||
| di/dt(A/us) | 200 | |||
| dv/dt(v/us) | 400 | |||
| I2t(A2S) | 25~3000 | |||
| Tj(oC)Max.TJ(C) | 100 | |||
| Input | Input Voltage | 0-10VDC / 4-200mmA / 470K-560K | ||
| Input Current | 40mA | |||
| Off Voltage | 1VDC | |||
| On Voltage | 3VDC | |||
| Off Time | 0.5ms DC / 10msAC | |||
| On Time | 0.5ms DC / 10msAC | |||
| Dielectric Strength | 50Hz, 60S 2500VAC | |||
| Ambient Temperature | -30oC~80oC(Under non-ice / dewfall condition) | |||
| Efficiency of Safety Working Current | Dissipative load is 60% / Inductive load is 40% | |||
| Type | Input Voltage | Output Voltage | Output Current (A) |
|---|---|---|---|
| ZG3NC-240B | 3-32VDC | 30-240VAC | 40 |

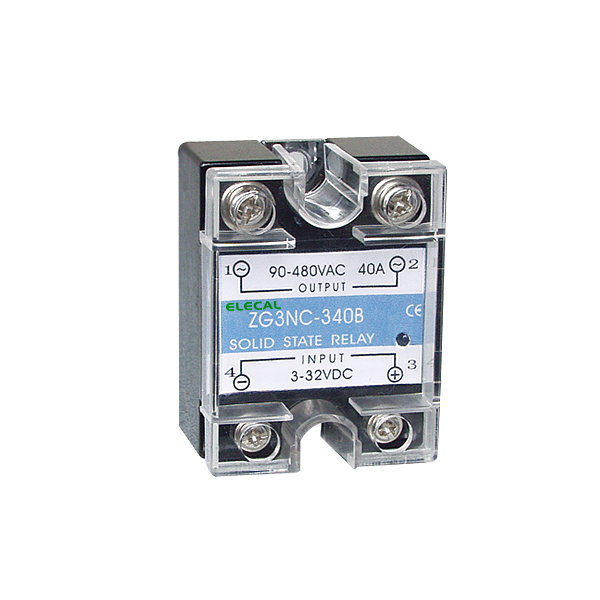

| ZG3NC-340B | 3-32VDC | 90-480VAC | 40 |
| ZG3NC-250B | 3-32VDC | 30-240VAC | 50 |
| ZG3NC-270B | 3-32VDC | 30-240VAC | 70 |
| ZG3NC-370B | 3-32VDC | 90-480VAC | 70 |
| ZG3NC-215A | 80-250VAC | 30-240VAC | 15 |
| ZG3NC-220A | 80-250VAC | 30-240VAC | 20 |
| ZG3NC-240A | 80-250VAC | 30-240VAC | 40 |
| ZG3NC-250A | 80-250VAC | 30-240VAC | 50 |
| ZG33-310B | 3-32VDC | 30-240VAC | 10 |
| ZG33-340B | 3-32VDC | 90-480VAC | 40 |
| ZG1NC-210C | 2W/470K-560K | 30-240VAC | 10 |
| ZG1NC-215C | 2W/470K-560K | 30-240VAC | 15 |
| ZG1NC-220C | 2W/470K-560K | 30-240VAC | 20 |
| ZG1NC-225C | 2W/470K-560K | 30-240VAC | 25 |
| ZG1NC-240C | 2W/470K-560K | 30-240VAC | 40 |
