FEATURES :

---

Special CMOS integrated circuit,super small bulk,high relia High repeat accuracy:±20% (including the initiate) shorter reset time :0.1 second (Max). Led indicating operating . socket for electromagent relay can be used. pule output (HT6U).

Application :

---

Output Controlload:HT6-29(-0):5A 250VAC;5A30VDC resistant loadHT6-4(-0):3A 250VAC; 3A 30VDC resistant loadTH6U:3A 30VDC resistant loadRated voltage:
(see selecting code)
single phase entire wave rectifier power can be used ofr DC voltage on 85% to 110% of rated voltage (90% to 110% for 12VDC),

Power Dissipation:
1W for DC
2.2W for AC

Socket:
DIN rail mounting:mounting:PYF08A/HT6-2,Yf14A/HT6-4 PCB
Jointing mounting:PY08/HT6-2,PY14/HT6-4
PCB mounting:PY08-0/HT6-2,PY14/HT6-4

FEATURES :

---

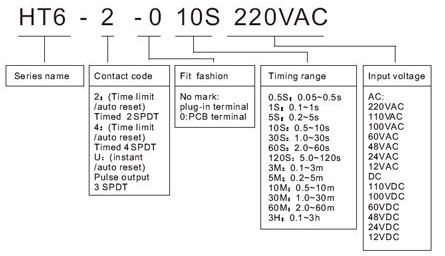

SELECTING CODE :

---

General parameters :

---
